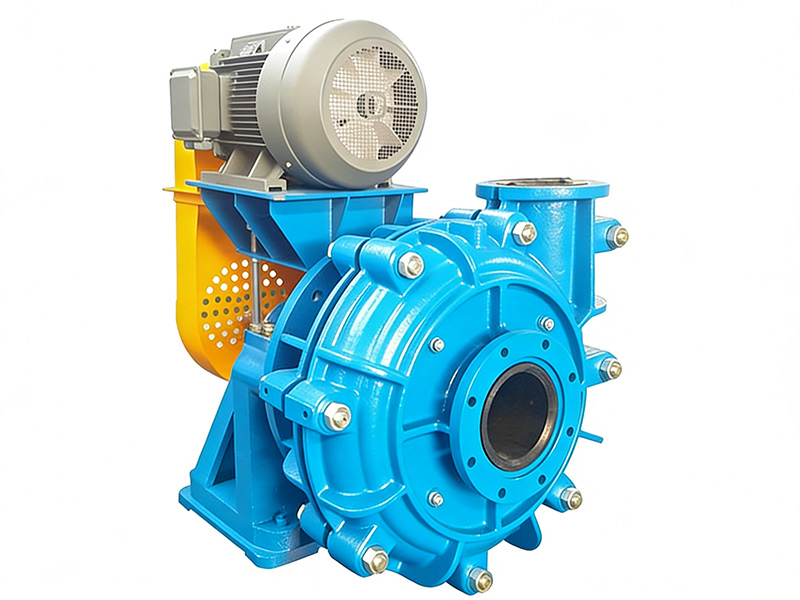

WHR-10/8F
- ModelWHR-10/8F
- Max. Power (KW)260
- Capacity (m3/h)540-1188
- Head(m)12-50
- Speed(r/min)400-750
- Max. Eff%75
- NPSH (m)2-12
- Solid Handling(mm)76
- Impeller Dia.(mm)686
- Weight(kg)2160
1. Modular design, easy to maintain,low spare cost due to high standardization;
2. Wide options of impellers of standard 5 vanes , open 3 vanes non-clogging;
3. 27% Chrome alloy hard metal, thick rubber and polyurethane pump lining are available and can be replaced with each other;
4. Standard ductile iron pump body, can withstand higher working pressure;
5. Famous brand bearing components can improve reliability, prolong bearing life and reduce lubrication cost;
6. Reliable shaft seal, packing seal, expeller seal, or mechanical seal are available;
7. Multi purpose design reduces inventory requirements and interchangeability;
8. Drive types: Different connection methods (WVZ,DC,CV,CRZ) with motor for selection, satisfy the requirements on different installation condition and different capacity & head.
9. The discharge direction of the pump can be oriented to any 8 positions based on different installation condition.
A centrifugal heavy duty rubber liner corrosion resistance mineral slurry pumps is mainly composed of 3 parts:
1.The anti-corrosion wet parts: (Impeller,Throatbush, Frame plate liner, Cover plate liner) Thickened wet components for extended wear life.
2. Shaft seal parts: Sealing flexibility choice of gland, Expeller seal or mechanical seals.
3. Bearing assembly parts
Expeller Seal Assy:Expeller seal is an impeller force of reversed centrifugal force preventing slurry leakage. Expeller seal can be on the single stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series.
Gland Seal Assy:Packing Seal is a general shaft seal.It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.It has the advantages of simple structure and convenient maintenance. But need to add shaft seal water, and should ensure enough water pressure and water yield.
Mechanical Seal Assy:Mechanical Seal is advanced sealing technique without sealing leakage, integrating construction, convenient installation & replacement, various constructions suit for all kinds of conditions.
Bearing assembly advantage features:
1.A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.
2.Four through bolts are required to hold the cartridge type housing in the frame.
3.The removable cartridge-type bearing assembly facilitates easy on-site maintenance procedures.
4.Provided with hardened shaft sleeve to protect the shaft .
5.Grease purged piston rings to help seal contaminates out of bearing housing.
Pump Mainly Parts & Material List | |||||
NO | Part | Material | NO | Part | Material |
1 | Shaft | High tense steel | 12 | Frame plate liner | Natural rubber / Customized material |
- | Shaft sleeve | 3Cr13 | 13 | Discharge joint ring | Natural rubber |
2 | Clamp bolts | Zinc plated steel | 14 | Volute liner seal | Natural rubber |
3 | Base | Ductile iron | 15 | Intake joint ring | Natural rubber |
4 | bolts,studs | Zinc plated steel | 16 | Expeller | 27% Chrome alloy |
- | Bearing body | Cast iron | 17 | Cover plate liner | Frame plate liner |
5 | Gland/Split gland | Cast iron | 18 | Throatbush | Natural rubber / Customized material |
6 | Frame plate | Ductile iron | 19 | Cover plate | Ductile iron |
7 | Expeller ring | 27% Chrome alloy/Rubber | 20 | Cotter | Cast iron |
8 | Expeller ring seal | Natural rubber | - | End cover | Color zinc plated |
9 | Volute liner seal | Natural rubber | - | Labyrinth cover | Color zinc plated |
10 | Impeller | Natural rubber / Customized material | - | Lantern ring | 1Cr18Ni9TI |
11 | Cover plate bolt | Zinc plated steel | - | Bearing | Top brand |
The WH centrifugal heavy duty alloy liner mine tailing slurry pump is the pump for highly abrasive/density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals plants plus other industrial applications, Sometimes, it could also be used in dredging of settling lagoons and pumping of drilling mud etc.
| • Mineral processing | • Ash handling | • Cyclone feeds | • Chemical slurry service |
| • Coal preparation | • Effluent handling | • Wet crushers | • Aggregate processing |
| • Ball mill discharge | • SAG mill discharge | • Rod mill discharge | • Fine primary mill grinding |
| • Tailings | • Secondary grinding | • Waste sludge | • Phosphoric acid |
| • Pulp and paper | • Food processing | • Cracking operations | • Industrial processing |
