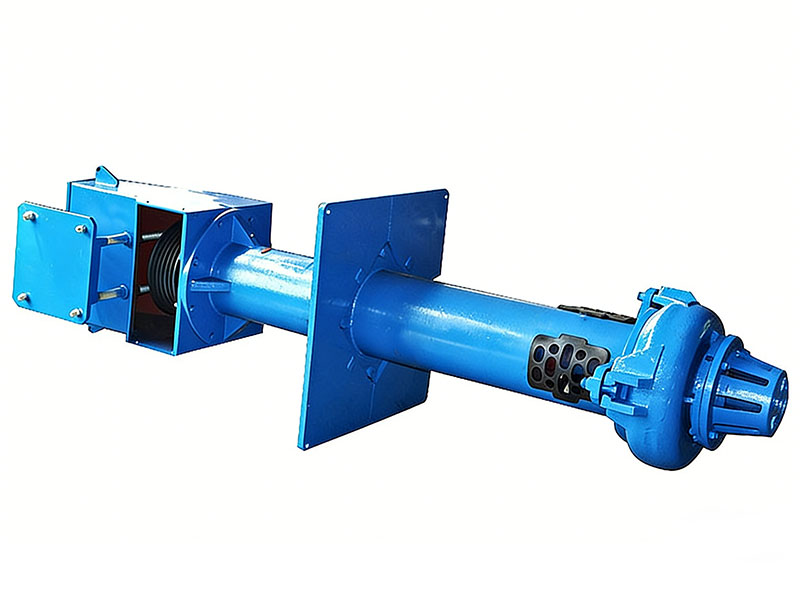

150SV-WP
- Model150SV-WP(R)
- Max. Power (KW)11-110
- Capacity (m3/h)108-576
- Head(m)8.5-40
- Speed(r/min)500-1000
- Max. Eff%52
- Solid Handling(mm)45
- Impeller Dia.(mm)450
- Weight(kg)1737
1. Cantilever design without submerged bearings or shaft seals;
2. Wet components are available in A05 high chrome alloys and elastomers (rubber);
3. The screened inlets and large impeller passages reduce the risk of blockages
4. Available in a prefabricated conical sump with quick clean facilities;
5. Replaceable strainers allows for easy maintenance;
6. Simple installation and easy maintenance.
7. Anti-wear, anti-corrosion, which let the pumps service more longer;
8. No priming required.
Pump Mainly Parts & Material List | |||||
No | Parts name | Materials | No | Parts name | Materials |
1 | Shaft | 45 High Strength Steel | 9 | Back liner | Ultra Chrome Alloy/ |
2 | Bearing | China Brand/ | 10 | Impeller | Ultra Chrome Alloy/ |
3 | Bearing Housing | HT250 | 11 | Pump casing | Ultra Chrome Alloy/ |
4 | Shaft spacer | Carbon Steel/ | 12 | Lower strainer | Cast Iron/ |
5 | Bearing | China Brand/ | 13 | Discharge pipe | Carbon Steel/ |
6 | Shim | Carbon Steel/ | 14 | Flushing pipe | Carbon steel |
7 | Column | Carbon Steel/ | 15 | Coupling | 45# Steel |
8 | Strainer | Cast Iron/ | 16 | Middle supporting parts | Carbon Steel/ |
WP(R) series vertical slurry pumps are mainly applicable to transport abrasive, coarse particle,high concentration slurry. They are widely used in metallurgy, mining, coal, electric power, building materials,environmental protection (when provided with an optional recessed vortex impeller)
· Minerals processing | · Coal preparation | · Chemical processing |
· Effluent handling | · Sand and gravel | · Abrasive and/or corrosive slurries |
· Large particle sizes | · High density slurries | · Heavy duties demanding cantilever shafts |
